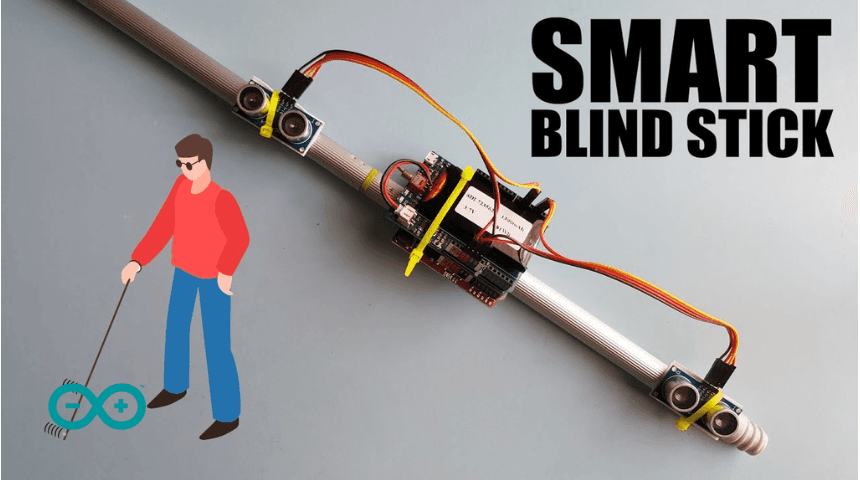

Smart Stick for Blind People



AIM:

To design and develop a smart stick that alerts blind people about obstacles using a buzzer when they approach something in their path.

PURPOSE:

Blind people face significant challenges in navigating their surroundings. This smart stick offers a solution by detecting obstacles and alerting the user through sound. The ultrasonic sensor detects objects in the path, and the buzzer produces a sound when obstacles are close, allowing the user to avoid collisions.

DESCRIPTION:

This project utilizes an Arduino Nano, an ultrasonic sensor (HC-SR04), and a buzzer to detect nearby obstacles and warn the user with sound.

Key Components:

1.    Arduino Nano: The microcontroller that processes the sensor's input and controls the buzzer.

2.    Ultrasonic Sensor (HC-SR04): Detects obstacles by measuring the distance between the stick and any object in front of it.

3.    Buzzer: Produces a sound when an obstacle is detected within a certain range.

4.    Battery: Powers the entire system, making it portable.

WORKING:

1.    The ultrasonic sensor measures the distance between the stick and any object in front of it.

2.    If an object is detected within a predefined distance (e.g., 50 cm), the buzzer sounds an alert.

3.    When the obstacle is removed (i.e., distance increases beyond 50 cm), the buzzer stops sounding.

4.    This system helps blind users by providing real-time auditory feedback about obstacles in their way.

TECHNICAL SPECIFICATIONS:

Hardware:

• Microcontroller: Arduino Nano
• Ultrasonic Sensor: HC-SR04
• Buzzer: 5V buzzer to produce sound
• Battery: 9V or Lithium-Ion battery to power the system
• Power Regulator: 5V regulator (if needed for consistent power)


Software:

·      Arduino IDE: Used to write and upload the code for controlling the ultrasonic sensor and buzzer.

WORKING EXPLANATION:

• The ultrasonic sensor continuously checks the distance between the stick and any obstacle in front of it.
• If the distance is less than or equal to 50 cm (this distance can be adjusted in the code), the buzzer is activated, producing a sound to alert the user.
• When the obstacle is no longer detected (distance greater than 50 cm), the buzzer is turned off, signaling the path is clear.



APPLICATIONS:

• Navigation Assistance: Helps blind or visually impaired people detect obstacles in real-time.
• Safety Device: Can be used in crowded areas, streets, or unknown environments to prevent collisions.
• Portable: Powered by a battery, the system is lightweight and easy to carry.



BLOCK DIAGRAM:

• Ultrasonic Sensor (HC-SR04): Detects obstacles by measuring the distance to objects.
• Arduino Nano: Controls the buzzer based on input from the ultrasonic sensor.
• Buzzer: Produces sound when an obstacle is detected.
• Battery: Powers the system, making it portable.



This Smart Stick for Blind People provides a low-cost, practical solution for enhancing the independence and safety of visually impaired individuals.
